When you're riding, a downed bike is a massive setback and a serious battle. One wrong move and your race is over. The right gear makes all the difference, and the Pro Racing Pull Strap Kit is engineered to be your rock-solid foundation for every move, so you can pick your bike up without missing a beat.

Both the front and rear pull straps are rugged and efficient accessories designed to help you rapidly pull out your dirt bike when it's stuck in rocks, loose sand, or any other challenging terrain. With a special abrasion-resistant neoprene, they are also more comfortable when pulling.

One of the key advantages of our proprietary design is the hassle-free installation. You won't need to take apart the entire front suspension to install it. The front pull strap is securely fastened to the bike's front fork and bolted through, with two additional zip ties on each side to ensure it stays in the correct position.

Packed with features that enhance its performance and durability, our 3-piece single-bolt design provides superior angle control, allowing you to adjust the front pull strap and securely fix it to your final preferred position. We've also hand-rounded and burned each tip for a refined look. For reliable security, we use nylon lock nuts so you'll never lose any hardware. The inside button head bolt provides max clearance for extra space, nylon washers fortify the main connection points for exceptional resilience, and we use strong eyelets built to last.

Engineered for a seamless fit and powerful performance, the rear pull strap mounts directly to your bike’s sub-frame for a rock-solid connection. Its perfect positioning gives you the leverage you need to get unstuck fast, all while adding a custom, high-end look to your ride.

2020-2026 KTM Pro Racing Pull Strap Kit | NSX Factor

$74.95

Brand

Model

Year

Quantity

- Lightweight & built to endure.

- Easy & fast installation.

- 100% Double nylon.

- 100% Abrasion-resistant neoprene handle cover.
FRONT STRAP

Use the following:

01 Front Strap (01 main + 02 secondary).

02 Stainless Steel Bolts.

02 Stainless Steel Lock Nuts.

04 Stainless Steel Fender Washers.

04 Nylon Washers.

04 Zip ties.

Installation:

1. Attach the secondary strap: Take one of the small straps and wrap it around the bike's fork, just below the triple clamp. Make sure the tips of the strap are facing forward.

2. Position the main strap: Place the main strap between the two ends of the secondary strap.

3. Prepare the bolt: Slide a stainless steel washer and then a black nylon washer onto one of the bolts.

4. Insert the bolt: Push the bolt through all three aligned holes from the inside of the mount, so the rounded head of the bolt is on the inside.

5. Add the final washers: On the other side of the bolt, add another black nylon washer followed by a stainless steel washer.

6. Hand-tighten the nut: Screw the stainless steel nut onto the bolt. Don't tighten it completely; just leave it loose enough so you can still move the main strap to adjust its angle later. This also leaves room to add at the back the zip ties for the secondary straps.

7. Attach the first zip tie: Loop a zip tie around the fork just above the triple clamp as shown on the picture.

8. Attach the second zip tie: Take a second zip tie and thread it from the back, under the secondary strap, and connect it to the first zip tie you just installed.

9. Finalize the installation: Adjust the position of the zip ties to secure the secondary strap and keep it always in place, then tighten the bolts and nuts firmly to lock the main strap in your desired angle/position.

10. Do the other side: Repeat the entire process for the other side of the bike.

Soft Suspension Setup & Clearance

If you run a soft suspension setup, the union between the main strap and the bolt may contact your fork guards during full compression. Failing to ensure proper clearance can cause the strap to break due to impact. If you run a soft setup, you must install the mount as suggested below to prevent damage:

- Option A: Rotate the entire mount assembly slightly outward so the strap union clears the guards.

- Option B: Trim the very top edge of the plastic fork guards to create a clear path for the hardware.

Pro Racing Front Pull Strap Installation Video

REAR STRAP FOR ALL MODELS 2020-2023 EXCEPT XC/SX

Use the following:

- 01 Strap.

- 02 Hex Head Screws (40mm).

- 02 Spacers.

- 04 Washers.

Installation:

1. Insert the hex head screw to the washer and then to the 3rd hole (3rd hole from the tip).

2. Insert the hex head screw to a second washer and then to the spacer.

3. Fix the head head screw under the fender.

4. Repeat on the other side.

REAR STRAP FOR 2020-2023 XC/SX MODELS

Use the following:

- 01 Strap.

- 02 Hex Head Screws (25mm).

- 02 Spacers.

- 04 Washers.

Installation:

1. Insert the hex head screw to the washer and then to the 2nd hole (2nd hole from the tip).

2. Insert the hex head screw to a second washer and then to the spacer.

3. Fix the hex head screw under the fender.

4. Repeat on the other side.

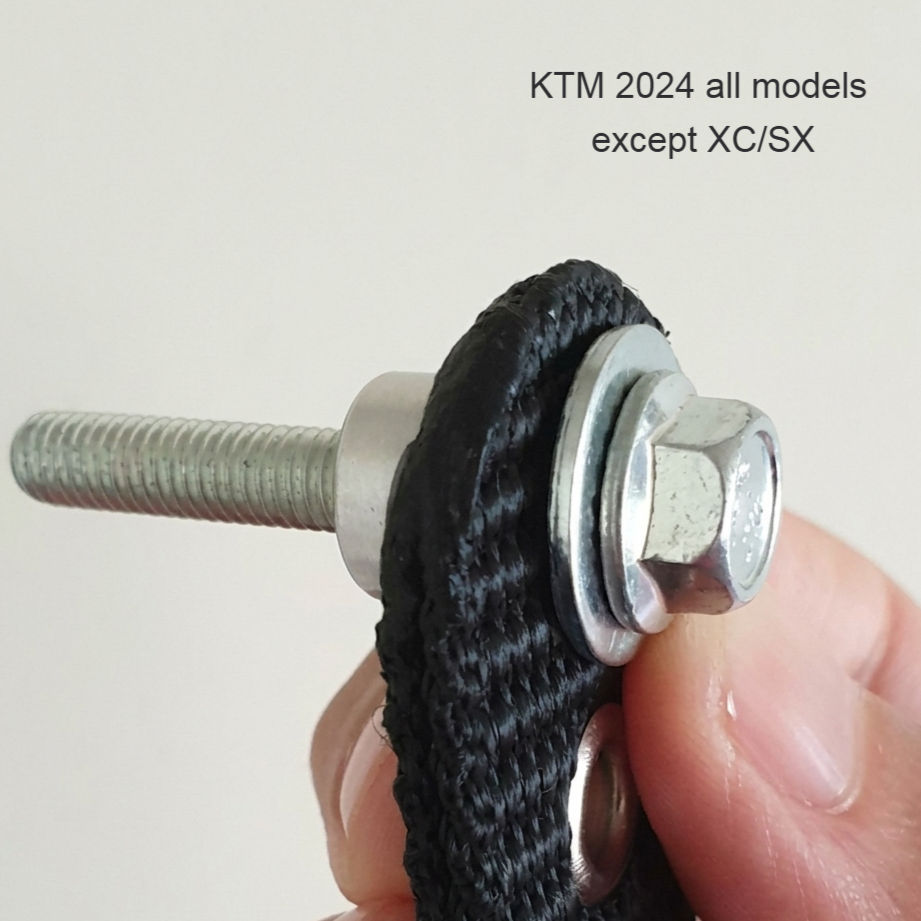

REAR STRAP FOR ALL 2024 MODELS EXCEPT XC/SX

Use the following:

- 01 Strap.

- 02 Hex Head Screws (40mm).

- 02 Spacers.

- 02 Washers.

Installation:

1. Insert the hex head screw to the washer and then to the 1st hole (1st hole from the tip).

2. Insert the hex head screw to a second washer and then to the spacer.

3. Fix the hex head screw under the fender.

4. Repeat on the other side.

REAR STRAP FOR ALL 2025-2026 MODELS EXCEPT XC/SX

Use the following:

- 01 Strap.

- 02 Hex Head Screws (40mm).

- 04 Spacers.

- 04 Washers.

Installation:

1. Insert the hex head screw to the washer and then to the 1st hole (1st hole from the tip).

2. Insert the hex head screw to a second washer and then to 2 spacers.

3. Fix the hex head screw under the fender.

4. Repeat on the other side.

REAR STRAP FOR 2024-2026 XC/SX MODELS

Use the following:

- 01 Strap.

- 02 Hex Head Screws (25mm).

- 02 Spacers.

- 04 Washers.

Installation:

1. Insert the hex head screw to the washer and then to the 1st hole (1st hole from the tip).

2. Insert the hex head screw to a second washer and then to the spacer.

3. Fix the hex head screw under the fender.

4. Repeat on the other side.
All of our straps are built to withstand the rigors of hard enduro riding. We offer a full 1-year product replacement guarantee that covers any manufacturing defects in materials and workmanship. This warranty does not cover damage or breakage caused by improper installation, failure to follow provided instructions, or lack of proper clearance on soft suspension setups. This warranty also does not cover normal wear and tear, as that does not affect the functional strength of the strap.
FRONT STRAP

- Strap Alignment for Pulling: The front strap is primarily for receiving assistance from other riders. For maximum strength, ensure the main strap is angled to align with the direction of the pull.

- Optimal Leverage Point: The front strap's intended and secure installation point is under the triple clamp as it ensures the strap is at the optimal angle for pulling, enhancing pulling leverage.

- Prioritize the Brake Cable Side: Begin with the brake cable side first. Completing this side initially creates more working room, making the subsequent side easier to manage.

- Utilize Lower Strap Positioning for Easier Assembly: To facilitate a smoother installation, start by positioning the strap lower on the fork since it narrows as you go down. Assemble all components loosely, just threading the bolts and nuts. Once assembled, slide the strap upward into its final desired position and then securely tighten the zip ties and all fasteners.

REAR STRAP

- Tire Clearance: To ensure the tire doesn't come into contact with the strap, during installation position the strap towards the front of the bike. This will help prevent the strap from twisting or turning towards the back when you tighten it.

- Bolt Security: We recommend adding a small drop of Loctite (242 Blue) on the bolts to keep them always secured.
FRONT STRAP

- Soft Suspension Clearance: To prevent contact during full suspension compression on very soft setups, rotate the mount assembly slightly outward to move the strap bolts away from the fork guards. Alternatively, you can trim the upper tips of the plastic fork guards to ensure total clearance.

- Aftermarket Protectors: If you are using aftermarket plastic/carbon protectors or full-wrap guards, note that some brands may require minor trimming or modifications to achieve a proper, flush fit.

REAR STRAP

- Acerbis Plastics (2020-23): If you have Acerbis plastics installed on your 2020-23 dirt bike, use the 2nd hole for an adequate fitment (2nd hole from the tip).
