FRONT STRAP
Use the following Hardware:
01 Main Pull Strap
02 Secondary Straps
02 Bolts
02 Nylon Lock Nuts
04 Aluminum Tabs
04 Zip Ties
Installation Instructions:

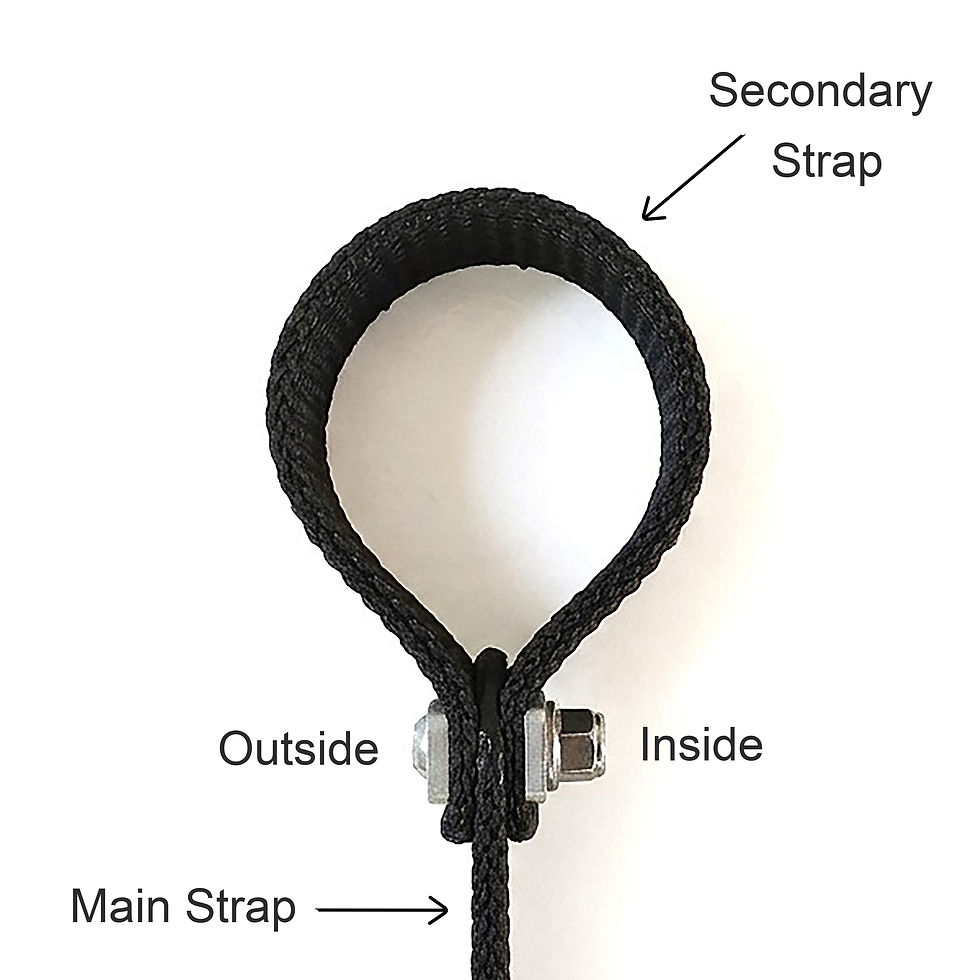

1. Wrap the Secondary Strap: Take one of the small secondary straps and wrap it around the bike's fork tube, just below the lower triple clamp. Ensure the tips of the strap face forward.
2. Align the Main Strap: Place one end of the main strap between the two overlapping tips of the secondary strap.
3. Prep the Bolt: Slide an aluminum tab onto one of the mounting bolts.
4. Insert the Bolt: Push the bolt through all three aligned eyelet holes from the outside facing inward, ensuring the rounded head of the bolt faces out.
5. Add the Inner Tab: Slide a second aluminum tab onto the exposed end of the bolt on the inside of the mount.
6. Hand-Tighten the Hardware: Thread the nylon lock nut onto the bolt by hand. Leave it loose enough so you can adjust the angle of the main strap and easily access the back of the secondary strap to install the zip ties.
7. Position the First Zip Tie: Loop a zip tie around the fork tube just above the lower triple clamp.
8. Anchor the Second Zip Tie: Thread a second zip tie from behind, routing it underneath the secondary strap, and loop it directly through the first zip tie you just installed.
9. Secure and Tighten: Adjust the position of the zip ties to pin the secondary strap firmly in place. Tighten the bolt and nut securely to lock the main strap at your preferred pulling angle.
10. Repeat on the Opposite Side: Follow the exact same process to complete the other side of the fork.
Soft Suspension Setup & Clearance
If you run a soft suspension setup, the union between the main strap and the bolt may contact your fork guards during full compression. Failing to ensure proper clearance can cause the strap to break due to impact. If you run a soft setup, you must install the mount using one of the configurations below to prevent damage:
- Option A: Rotate the entire mount assembly slightly outward so the strap union completely clears the guards.
- Option B: Trim the very top edge of the plastic fork guards to create a clear path for the hardware.
Important Notes
1. Optimal Leverage Point: The front strap's intended and secure installation point is directly under the triple clamp. This ensures the strap is at the optimal angle for pulling, significantly enhancing your leverage.
2. Prioritize the Brake Cable Side: Begin installation on the brake cable side first. Completing this side initially creates more working room, making the opposite side much easier to manage.
3. Utilize Lower Strap Positioning for Easier Assembly: To facilitate a smoother installation, start by positioning the strap lower on the fork tube where it narrows. Assemble all components loosely, just threading the bolts and nuts. Once assembled, slide the entire strap setup upward into its final position and then securely tighten the zip ties and all fasteners.
REAR STRAP
Installation WITH tail light plastic:
Use the following Hardware:
- 01 Strap.
- 02 Hex Head Screws (40mm).
- 02 Aluminum Spacers.
- 04 Washers.
Installation Instructions:
1. Insert the bolt to the washer.
2. Insert the bolt into the 2nd hole of the strap (2nd hole from the tip).
3. Insert the bolt to a 2nd washer and then to the aluminum spacer.
4. Tighten the bolt to the dirt bike.
5. Repeat on the other side.
Installation WITHOUT tail light plastic:
Use the following Hardware:
- 01 Strap.
- 02 Hex Head Screws (25mm).
- 02 Aluminum Spacers.
- 04 Washers.
Installation Instructions:
1. Insert the bolt to the washer.
2. Insert the bolt to the 2nd hole of the strap (2nd hole from the tip).
3. Insert the bolt to a 2nd washer and then to the aluminum spacer.
4. Tighten the bolt to the dirt bike.
5. Repeat on the other side.
Installation Tips:
- Please take a look at the pictures for correct installation.
- We recommend to add a small drop of Loctite (242 Blue) on the bolts to keep them always secured.
