Engineered for durability and peak performance, the 2017-2019 KTM Pro Racing Pull Strap Kit from NSX Factor offers riders a reliable solution for navigating challenging terrain. These high-tensile straps are race-proven to withstand the toughest conditions, ensuring your bike remains secure in mud and deep ruts. At NSX Factor, we prioritize quality and rider confidence, providing gear designed to enhance your off-road experience. Equip your KTM with this essential kit and face every trail obstacle with assurance. Trust NSX Factor for products that combine strength, reliability, and professional-grade performance.
2017-2019 KTM Pro Racing Pull Strap Kit | NSX Factor
- Lightweight & built to endure.
- Easy & fast installation.
- 100% Double nylon.
- 100% Abrasion-resistant neoprene handle cover.
This part has been specially designed for KTM 2017 - 2019 Off-road/Enduro dirt bikes all 2T & 4T models.
FRONT STRAP
Use the following Hardware:
01 Front Strap (01 main + 02 secondary).
02 Stainless Steel Bolts.
02 Stainless Steel Lock Nuts.
04 Stainless Steel Fender Washers.
04 Nylon Washers.
04 Zip ties.
Installation Instructions:
1. Attach the secondary strap: Take one of the small straps and wrap it around the bike's fork, just below the triple clamp. Make sure the tips of the strap are facing forward.
2. Position the main strap: Place the main strap between the two ends of the secondary strap.
3. Prepare the bolt: Slide a stainless steel washer and then a black nylon washer onto one of the bolts.
4. Insert the bolt: Push the bolt through all three aligned holes from the inside of the mount, so the rounded head of the bolt is on the inside.
5. Add the final washers: On the other side of the bolt, add another black nylon washer followed by a stainless steel washer.
6. Hand-tighten the nut: Screw the stainless steel nut onto the bolt. Don't tighten it completely; just leave it loose enough so you can still move the main strap to adjust its angle later. This also leaves room to add at the back the zip ties for the secondary straps.
7. Attach the first zip tie: Loop a zip tie around the fork just above the triple clamp as shown on the picture.
8. Attach the second zip tie: Take a second zip tie and thread it from the back, under the secondary strap, and connect it to the first zip tie you just installed.
9. Finalize the installation: Adjust the position of the zip ties to secure the secondary strap and keep it always in place, then tighten the bolts and nuts firmly to lock the main strap in your desired angle/position.
10. Do the other side: Repeat the entire process for the other side of the bike.
Soft Suspension Setup & Clearance
If you run a soft suspension setup, the union between the main strap and the bolt may contact your fork guards during full compression. Failing to ensure proper clearance can cause the strap to break due to impact. If you run a soft setup, you must install the mount as suggested below to prevent damage:
- Option A: Rotate the entire mount assembly slightly outward so the strap union clears the guards.
- Option B: Trim the very top edge of the plastic fork guards to create a clear path for the hardware.
Important Notes:
1. Optimal Leverage Point: The front strap's intended and secure installation point is under the triple clamp as it ensures the strap is at the optimal angle for pulling, enhancing pulling leverage.
2. Prioritize the Brake Cable Side: Begin with the brake cable side first. Completing this side initially creates more working room, making the subsequent side easier to manage.
3. Utilize Lower Strap Positioning for Easier Assembly: To facilitate a smoother installation, start by positioning the strap lower on the fork since it narrows as you go down. Assemble all components loosely, just threading the bolts and nuts. Once assembled, slide the strap upward into its final desired position and then securely tighten the zip ties and all fasteners.
Pro Racing Front Pull Strap Installation Video
(Video shown on Husqvarna. Fits on all offered brands identically.)

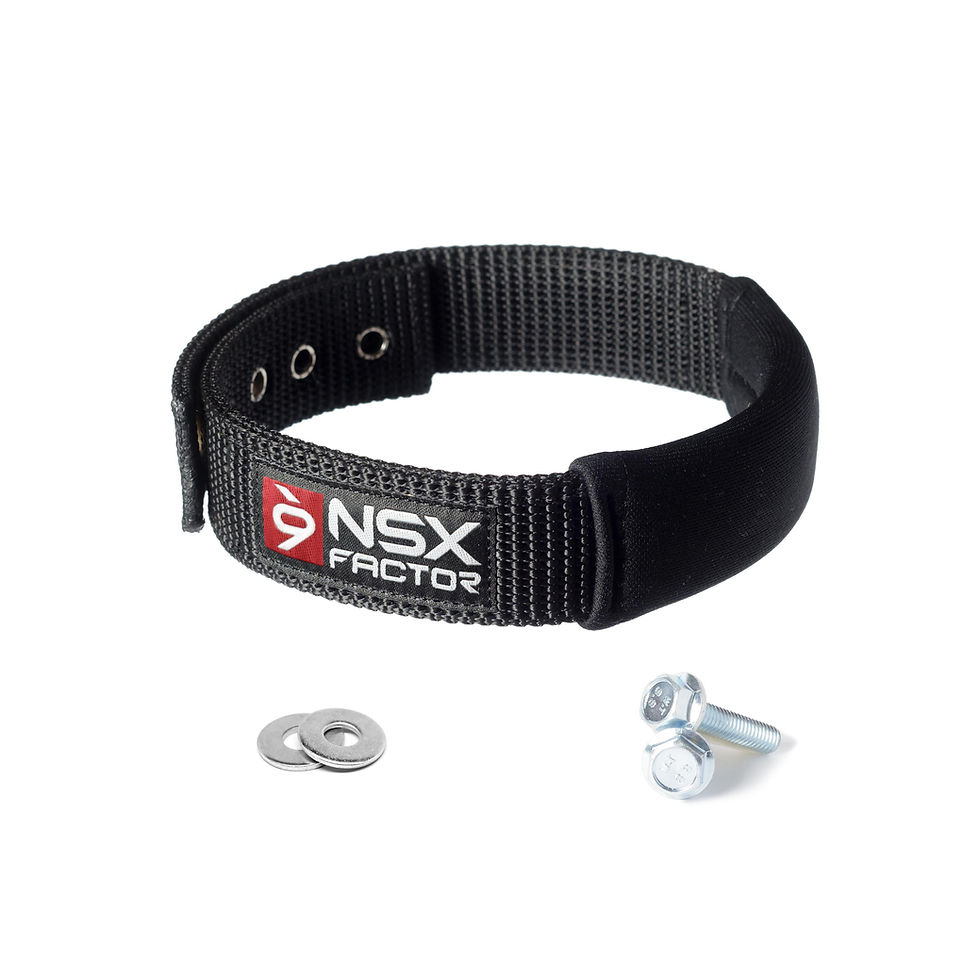

REAR STRAP (ALL MODELS 2017-2019 EXCEPT XC/SX 2019)
Use the following Hardware:
- 01 Strap.
- 02 25mm Hex Head Screws.
- 04 Washers.
- 02 Aluminum Spacers.
Installation Instructions:
1. Insert the bolt to the washer.
2. Insert the bolt with the washer to the 2nd hole of the strap (2nd hole from the tip).
3. Insert the bolt to the 2nd washer.
4. Insert the bolt to the aluminum spacer.
5. Tighten the bolt to the dirt bike.
6. Repeat on the other side.
REAR STRAP (ONLY FOR 2017-2018 XC/SX MODELS)
Use the following Hardware:
- 01 Strap.
- 02 25mm Hex Head Screws.
- 04 Washers.
- 02 Aluminum Spacers.
Installation Instructions:
The rear pull strap must be fixed under the fender using the factory cupped washer, then the unthreaded aluminum spacer, then a washer, then the strap (2nd hole from the tip), then a 2nd washer and finally the bolt.
REAR STRAP (ONLY FOR 2019 XC/SX MODELS)
Use the following Hardware:
- 01 Strap.
- 02 25mm Hex Head Screws.
- 02 Aluminum Spacers.
- 04 Washers.
Installation Instructions:
1. Insert the hex head screw to the washer.
2. Insert the hex head screw to the 2nd hole (2nd hole from the tip of the strap).
3. Insert the bolt to a 2nd washer and then to the aluminum spacer.
4. Fix the head head screw under the fender.
5. Repeat on the other side.
Installation Tips:
- Please take a look at the pictures for correct installation.
- We recommend to add a small drop of Loctite (242 Blue) on the bolts to keep them always secured.
- To ensure the tire doesn't come into contact with the strap, during installation position the strap towards the front of the bike. This will help prevent the strap from twisting or turning towards the back when you tighten it.
All of our straps are built to withstand the rigors of hard enduro riding. We offer a full 1-year product replacement guarantee that covers any manufacturing defects in materials and workmanship. This warranty does not cover damage or breakage caused by improper installation, failure to follow provided instructions, or lack of proper clearance on soft suspension setups. This warranty also does not cover normal wear and tear, as that does not affect the functional strength of the strap.
- All Sales Are Final: All sales are final and we do not accept returns or exchanges.
- Exception for Defective Products: If you receive a product with a manufacturing defect, please see our Warranty section.Avoid directing a full stream of high-pressure water onto the strap. Concentrated, full-force water pressure can cause damage over time. We recommend spot-cleaning the strap using low-pressure rinsing.
FRONT STRAP
- Strap Alignment for Pulling: The front strap is primarily for receiving assistance from other riders. For maximum strength, ensure the main strap is angled to align with the direction of the pull.
REAR STRAP
- Bolt Security: We recommend adding a small drop of Loctite (242 Blue) on the bolts to keep them always secured.FRONT STRAP
- Soft Suspension Clearance: To prevent contact during full suspension compression on very soft setups, rotate the mount assembly slightly outward to move the strap bolts away from the fork guards. Alternatively, you can trim the upper tips of the plastic fork guards to ensure total clearance.
- Aftermarket Protectors: If you are using aftermarket plastic/carbon protectors or full-wrap guards, note that some brands may require minor trimming or modifications to achieve a proper, flush fit.
