REAR STRAP FOR ALL 2017-2019 MODELS EXCEPT 2019 TX/FX MODELS
Use the following Hardware:
- 01 Strap.
- 01 Hex Head Screw (25mm).
- 01 Aluminum Spacer.
- 01 Washer.
- 01 Nut.
Installation Instructions:
1. Drill an M6 hole on the rear plastic fender as shown on the picture (1.75 inches from the rib).
2. Trim your seat so that the head of the bolt can fit adequately.
3. Insert the lift strap under the sub-frame handles on both sides.
4. Pass the bolt into one aluminum spacer, then through a washer, then through both strap holes (use the 2nd hole on both tips) and finally insert the bolt through the drilled hole of the rear plastic fender.
4. Under the rear plastic fender, insert a washer to the bolt and tighten the nut.
REAR STRAP FOR 2019 TX & FX MODELS
Use the following Hardware:
- 01 Strap.
- 02 Hex Head Screws (25mm).
- 02 Aluminum Spacers.
- 02 Washers.
Installation Instructions:
1. Insert the bolt to the washer.
2. Insert the bolt to the 3rd hole of the strap (3rd from the tip).
3. Insert the bolt to the aluminum spacer.
4. Tighten the bolt to the dirt bike.
5. Repeat on the other side.
Installation Tips:

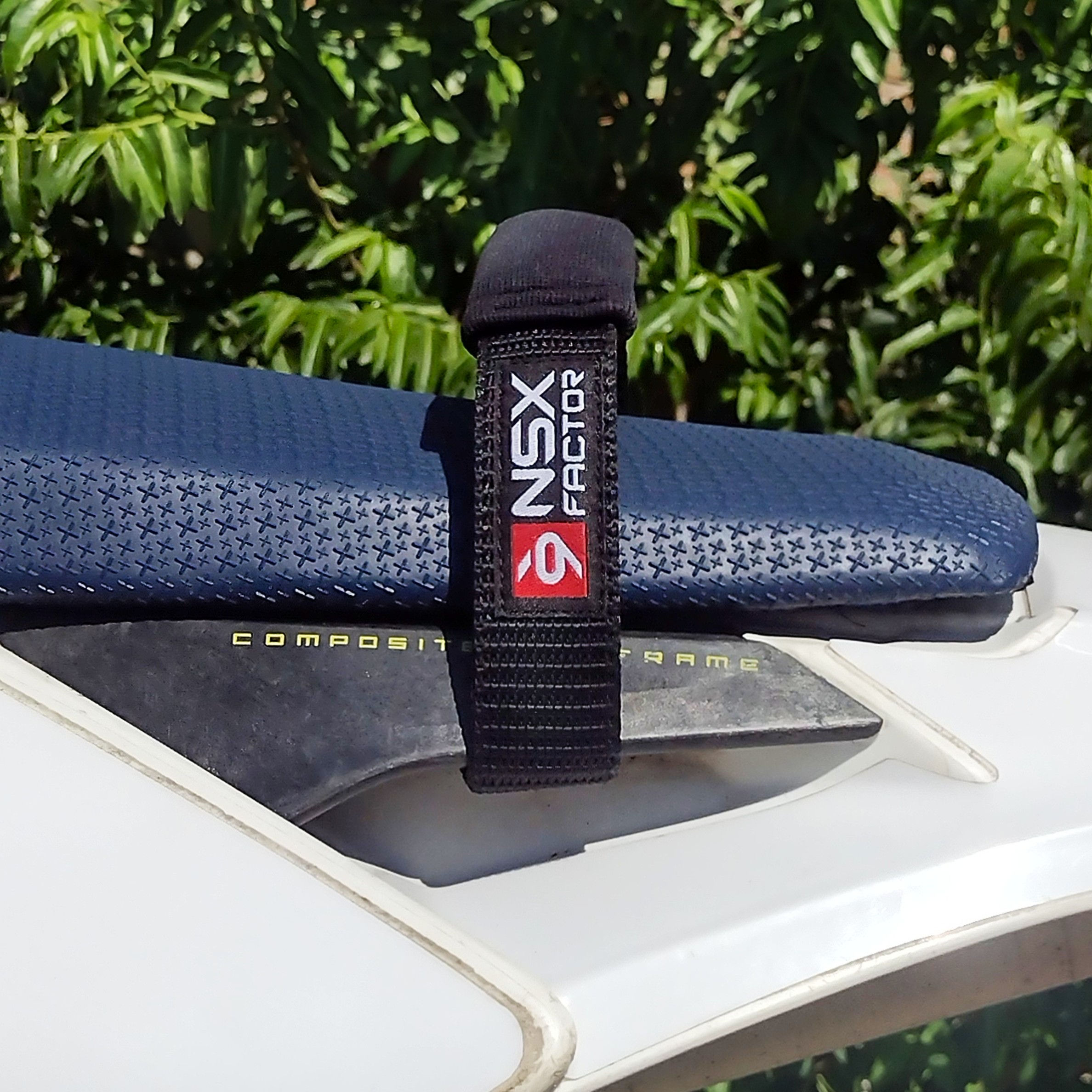

- Please take a look at the pictures for correct installation.
- We recommend to add a small drop of Loctite (242 Blue) on the bolts to keep them always secured.
